Introduction to door and window profiles

The complete set of profiles required for the construction of metal doors and windows of buildings is manufactured and supplied with good quality and excellent dimensional accuracy.
Door & Window Profiles are widely used in the construction industry and are supplied to the domestic and overseas markets at the world class factory of Pars Profiles with the best quality and in different dimensions according to customer's order.

Specifications table

Dimensions
(mm)

Weight one meter long (kg)

1 4591 30 29 25.5 40 1.01 1.12 - 1.665 1.973 -
1 456 22 29 25.5 42 1.01 1.12 - 1.665 1.973 -
1 457 32 29 25.5 32 1.01 1.12 - 1.665 1.973 -
1 458 20 33.5 25.5 4 - - - 1.665 1.973 -
1 459 30 33.5 25.5 30 - - - 1.655 1.973 -
1 491 22 10 6 - - - - 0.66 0.84 -
1 84 38 29 25 51 1.14 1.25 1.556 - 2.215 2.45
2 509 38 29 25 51 1.14 1.25 1.556 - 2.215 2.45
2 507 25 29 25 51 1.14 1.25 1.556 - 2.215 2.45
2 508 38 29 25 38 1.14 1.25 1.556 - 2.215 2.45
2 554 29 33 25 55 - - - - 2.398 2.655
2 555 42 33 25 42 - - - - 2.398 2.655
2 222 25 11 7 - - - - - 0.91 1
2 95 25 11 7 - - - - - 0.742 0.937
3 501 31 34 30 46 - - - - 2.215 2.45
3 552 23 34 30 53 - - - - 2.398 2.655
3 576 41 34 30 41 - - - - 2.537 2.808
3 577 23 38 30 53 - - - - 2.537 2.808
3 579 35 35 30 38 - - - - 2.537 2.808
3 252 27 15 8 - - - - - 1.04 1.159
3 87 28 15 11 - - - - - 1.025 1.123
4 551 37 34 30 52 - - - - - 2.655
4 602 31 34 30 61 - - - - - 2.977
4 601 46 34 30 46 - - - - - 2.977
4 604 29 38 30 59 - - - - - 2.977
4 603 44 38 30 44 - - - - - 2.977
4 252 27 15 8 - - - - - - 1.15
4 87 28 15 11 - - - - - - 1.123
5 571 40 34 30 55 - - - - - 2.808
5 638 36 34 30 66 - - - - - 3.14
5 633 51 34 30 51 - - - - - 3.14
5 635 33 38 30 63 - - - - - 3.14
5 631 48 38 30 48 - - - - - 3.14
5 252 27 15 8 - - - - - - 1.15
5 87 28 15 11 - - - - - - 1.123
6 606 46 34 30 61 - - - - - 2.977
6 702 44 34 30 74 - - - - - 3.39
6 701 59 34 30 59 - - - - - 3.39
6 704 42 38 30 72 - - - - - 3.39
6 706 57 38 30 57 - - - - - 3.39
6 252 27 15 8 - - - - - - 1.15
6 87 28 15 11 - - - - - - 1.123
7 703 59 34 30 74 - - - - - 3.472
7 762 55 34 30 85 - - - - - 3.777
7 761 70 34 30 70 - - - - - 3.777
7 764 53 38 30 83 - - - - - 3.777
7 766 68 38 30 68 - - - - - 3.777
7 252 27 15 8 - - - - - - 1.15
7 87 28 15 11 - - - - - - 1.123
8 559 35 38 34 50 - - - - - 2.655
8 604 29 34 30 59 - - - - - 2.977
8 603 44 34 30 44 - - - - - 2.977
8 635 33 34 30 63 - - - - - 3.1
8 654 33 38 34 63 - - - - - 3.1
8 252 27 15 8 - - - - - - 1.15
8 87 28 15 11 - - - - - - 1.123

Door and window profile features

No fluid movement in it

Lack of fluid transfer in industrial and scaffold pipes

Failure to perform a series of tests

Failure to perform a series of tests and technical analyzes such as hydrostatic (no leakage) on it

Capability of different weights

Capability of different weights in industrial and scaffold pipes

High strength and toughness

High strength and bending and torsion resistance

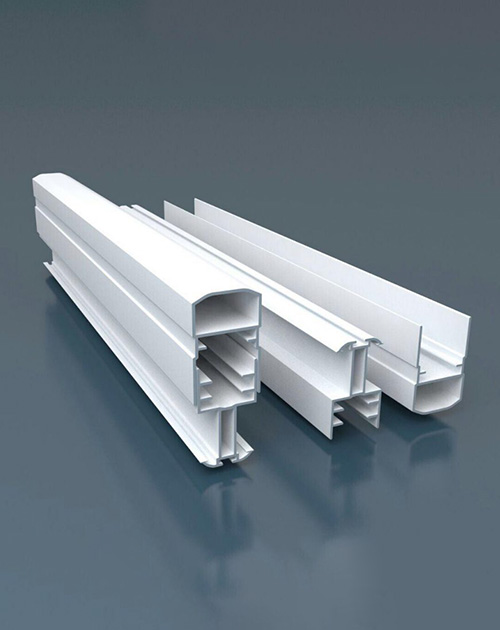

Door-Profile-Img

Applications

Door and window profiles in various fields

  • Home Appliances and Kitchen Industries

  • Heavy and light cars room

  • Agricultural and Food Industries

  • Health & Medical Supplies

  • Transmission of water, gas, electricity and fluids

  • sport-icon

    Sport and recreation supplies

Other applications include door and window profiles for the manufacture of metal tables and chairs, writing desks and benches, laboratory equipment and signage, driving and advertising boards.
